Why HVAC Coil Measurement Is More Complex Than It Looks

Measuring a coil isn’t just about height, width, and depth.

To ensure a proper fit and optimal performance, several critical factors have to be accounted for:

• Fin height and fin length (affects heat transfer and airflow)

• Tube diameter and spacing (impacts system efficiency)

• Casing dimensions and clearances (determines physical fit)

• Connection size, type, and location (left/right hand, orientation, accessibility)

• Airflow direction and face area (critical for system performance)

• Number of rows and circuiting (affects capacity and pressure drop)

In many commercial and industrial systems, these details aren’t clearly documented—or they’ve changed over time due to retrofits or repairs.

That’s where problems begin.

Common HVAC Coil Measurement Challenges in the Field

Even experienced teams run into obstacles when measuring HVAC coils on-site:

• Units installed in tight or hard-to-reach mechanical spaces

• Equipment that has been modified over years of service

• Missing or illegible nameplates and original specs

• Reliance on “standard sizes” that no longer apply

What looks straightforward on paper often turns into guesswork in the field.

And guesswork is expensive.

The Real-World Cost of Incorrect Coil Sizing

When a replacement coil doesn’t match the system exactly, the impact goes far beyond inconvenience.

Here’s what that can look like in practice:

• Installation delays while teams attempt to adapt or troubleshoot

• Crane rescheduling fees if the unit can’t be installed as planned

• Labor overruns from extended time on-site

• Emergency cooling solutions to keep facilities operational

• Downtime that affects tenants, production, or customers

• Reduced system efficiency due to improper airflow or fit

In some cases, a coil that’s “close” gets installed anyway just to keep things moving. But that often leads to long-term performance issues, higher energy costs, and premature wear on the system.

When Should You Bring in Professional Coil Measurement?

Not every project requires on-site measurement—but many benefit from it.

It’s especially worth considering when:

• The unit is older or has been modified

• Original specifications are missing or unreliable

• The system is critical to operations (healthcare, manufacturing, data centers)

• Access is limited or complex

• Downtime would result in significant financial impact

In these situations, accurate measurement isn’t just helpful—it’s essential.

How Re-Coil Eliminates Measurement Risk

At Re-Coil Solutions, we specialize in custom HVAC coils built to match real-world conditions—not just what’s written on a spec sheet.

That’s why we offer on-site measurement services within a six-hour radius of our Longview, TX headquarters.

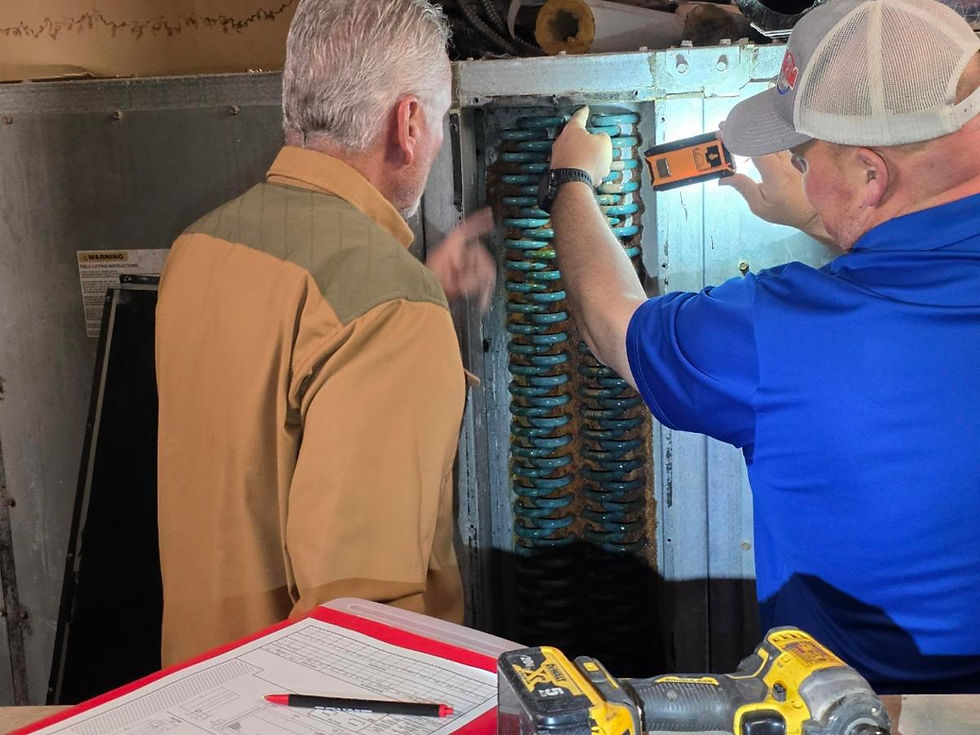

Our technicians measure directly at your facility, accounting for:

• Actual unit conditions

• Installation constraints

• Connection alignment and accessibility

• Any field modifications that affect fit

Because when we take the measurements, we take the responsibility with it.

No guesswork.

No passing liability back to you.

Just a replacement coil that fits—and performs—the way it should.

Get It Right the First Time

In commercial HVAC, delays are costly—and mistakes are even more so.

Accurate coil measurement helps:

• Reduce replacement coil lead time issues

• Avoid costly rework

• Ensure proper system performance

• Keep your facility running without interruption

If you’re planning a coil replacement project, taking the extra step to get precise measurements upfront can save time, money, and frustration down the line.

Need help with an upcoming project?

Let Re-Coil Soluions take measurement off your plate—and get it right the first time.
